What are the dimensions of a urinal in a restroom partition?

I. Common Size Ranges for Urinal Dividers
In public restroom partitions, the term “urinal divider” typically refers to two types:

Urinal partitions (dividers between two urinals)

Dividers above or to the side of urinals (for splash protection and privacy)

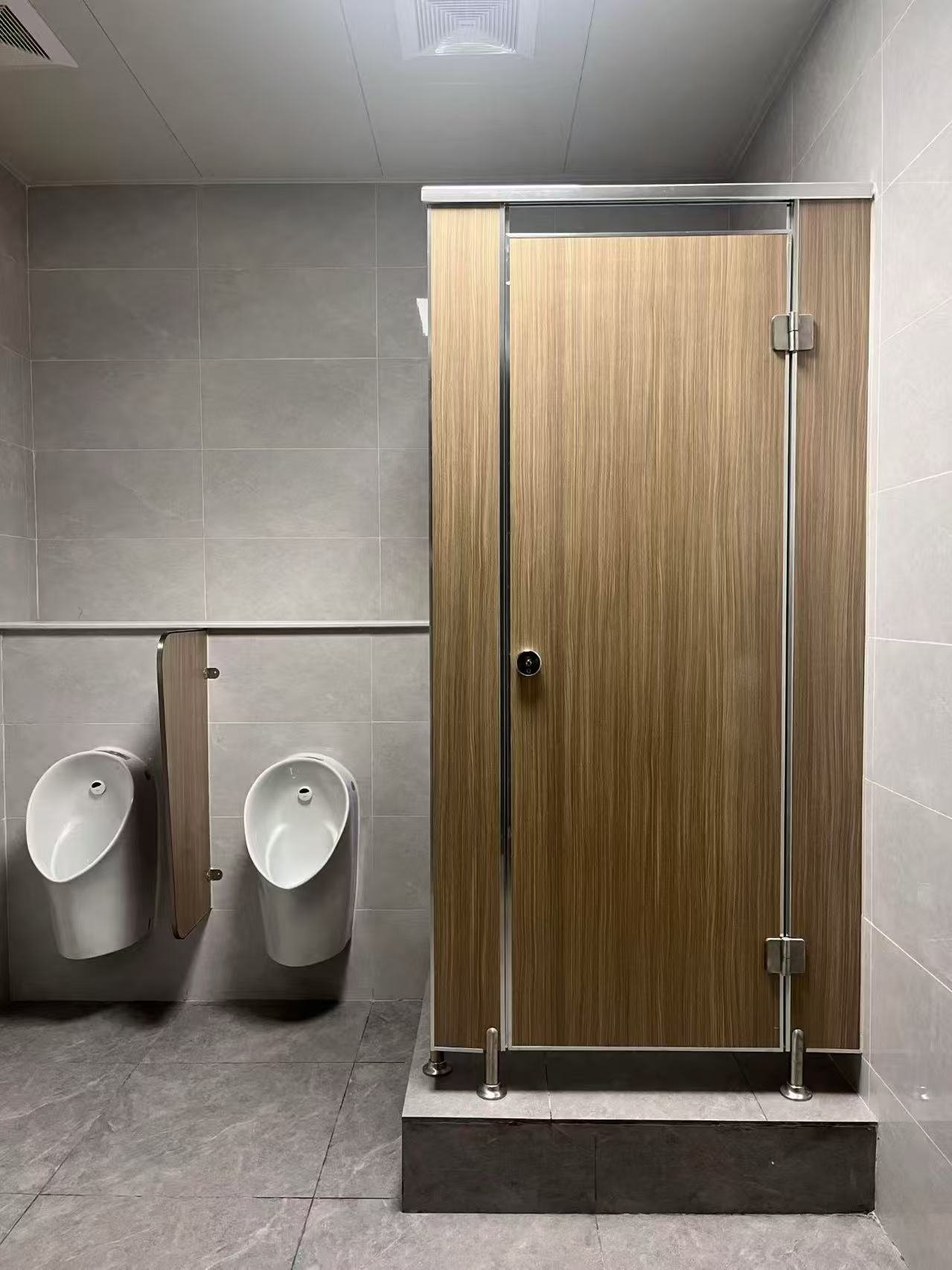

1. Urinal Partition (Intermediate Panel)
   Width: Typically 300mm – 450mm
   Common standard widths are 400mm or 450mm, depending on the urinal width and installation spacing.

Height: Typically 600mm – 900mm
Common heights are 600mm, 750mm, and 800mm, designed to block sightlines and prevent splashing.

Thickness: Anti-bacterial panels are commonly available in 12mm or 18mm. The 12mm thickness is sufficient to meet strength requirements, while the 18mm option offers a more substantial feel and better sound insulation.

2. Urinal side panels / end panels
   Width: 200mm – 350mm, typically 300mm

Height: Similar to partition panels, but taller; typically 800mm – 1000mm

Some projects use floor-to-ceiling side panels, with heights reaching 1200mm or even extending to the top of the main partition, to enhance privacy.

3. Upper Panel / Top Panel
   In some high-end settings or locations such as airports and hospitals, a continuous upper panel is often installed above the urinals:

Height: Approximately 300mm – 400mm

Length: Arranged continuously according to the number of urinals

Purpose: Splash protection, aesthetic appeal, and to facilitate the installation of sensors or decorative trim

Our factory is equipped with CNC machines, allowing us to manufacture urinal panels in various sizes and designs to meet your needs. We also offer a wide range of colors. If you have any requirements in this regard, please feel free to contact us at any time.
